HDPE vs ABS Plastic Material Selection Guide

2022-09.01 Read:share:

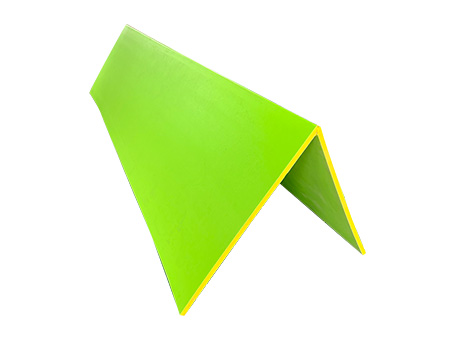

HDPE vs ABS plastic sheet material comparison for buyers

Need help comparing HDPE and ABS? Send your application, material option, size, thickness, impact requirement, outdoor exposure, drawing file, quantity and destination. These details help check whether HDPE sheet, ABS or another plastic material is suitable.

RFQ tip: include the use environment, required stiffness, impact need, water or chemical exposure, machining or forming method, drawing file, quantity and destination before selecting HDPE or ABS.

When should I choose HDPE instead of ABS?

HDPE is often selected for chemical resistance, moisture resistance, outdoor boards, cutting boards and cost controlled sheet applications. ABS may be selected where stiffness, surface finish or formed parts are more important. The right choice depends on size, thickness, use environment, impact requirement and quantity.

Request HDPE or ABS Material Selection Support

ABS and HDPE are both popular thermoplastics on the market, which material is better? The following describes the differences between the two in terms of performance parameters, features, advantages and disadvantages, and application scenarios.

Left : HDPE
Right : ABS

1.Performance Parameters

Comparison of ABS and HDPE performance parameters
ABS	material	HDPE
4,100	Tensile Strength (psi)	4,000
304,000	Flexural Modulus (psi)	200,000
7.7	Izod Shock (notch) (ft- lbs/in of notch)	1.3
177	Heat Deflection Temperature @ 264 psi(°F)	172
0.30	Water absorption (immersion for 24 hours) (%)	0.10
5.6	Coefficient of Linear Thermal Expansion (in/in/°Fx10-5)	7.0

2.ABS and HDPE Properties

Comparison of ABS and HDPE properties
Excellent impact strength	Good tensile strength
Good manufacturing and processing properties	Low hygroscopicity
Excellent aesthetic properties	Corrosion resistance
Good chemical resistance	Low temperature resistance
Low thermal conductivity	Anti-uv
Low coefficient of friction	Excellent electrical insulation

Both HDPE and ABS have their own advantages, as well as their own disadvantages.

3.Disadvantages of HDPE and ABS

Disadvantages of ABS and HDPE
Not resistant to UV	not resistant to high temperature
Easy to age	Poor air permeability
Pollution from incineration	Low surface hardness
High water absorption	poor aging resistance
Poor dissolution resistance	Poor mechanical properties

4.Application

HDPE application: In application scenarios, it can be applied to: brewing lining, laboratory, welding water tank, welding special-shaped parts, appliance parts, seals, ice hockey boards, skid plates, cutting boards, sliding profiles, scrapers, guide rails, conveyor slides Block seat, fixed plate, assembly line star wheel, screw rod, compartment lining, dump truck compartment lining, cutting board, etc.
ABS application: commonly used in the production of hand model, the thermoforming of the inner box of the refrigerator, electronic and electrical manufacturing, medical and pharmaceutical, imaging equipment parts, architectural model making, auto parts, food industry parts and other fields. ABS plastic sheets are commonly used in dashboards, hubcaps, and body parts of automobiles because of their strength, low temperature resistance, and uneven surfaces that are not easily scratched. Professional 3D printers often use ABS plastic because of its lower melting point. Back
